ESD POM Plastic Granules For Anti Static Products

Name: Chinese factory ESD POM plastic granules for electronic products
Model: 646A-22-JC
Usage: Injection and Extrusion level
Color: Nature Color or customized
Filler: ESD agent&POM materials
Application: ESD sheet, board, roll etc.
Brand: Ansuyi
Oringin From: Guangdong, China
Contacting way: yvonneyao@ansuyi.com
Send Inquiry
Description

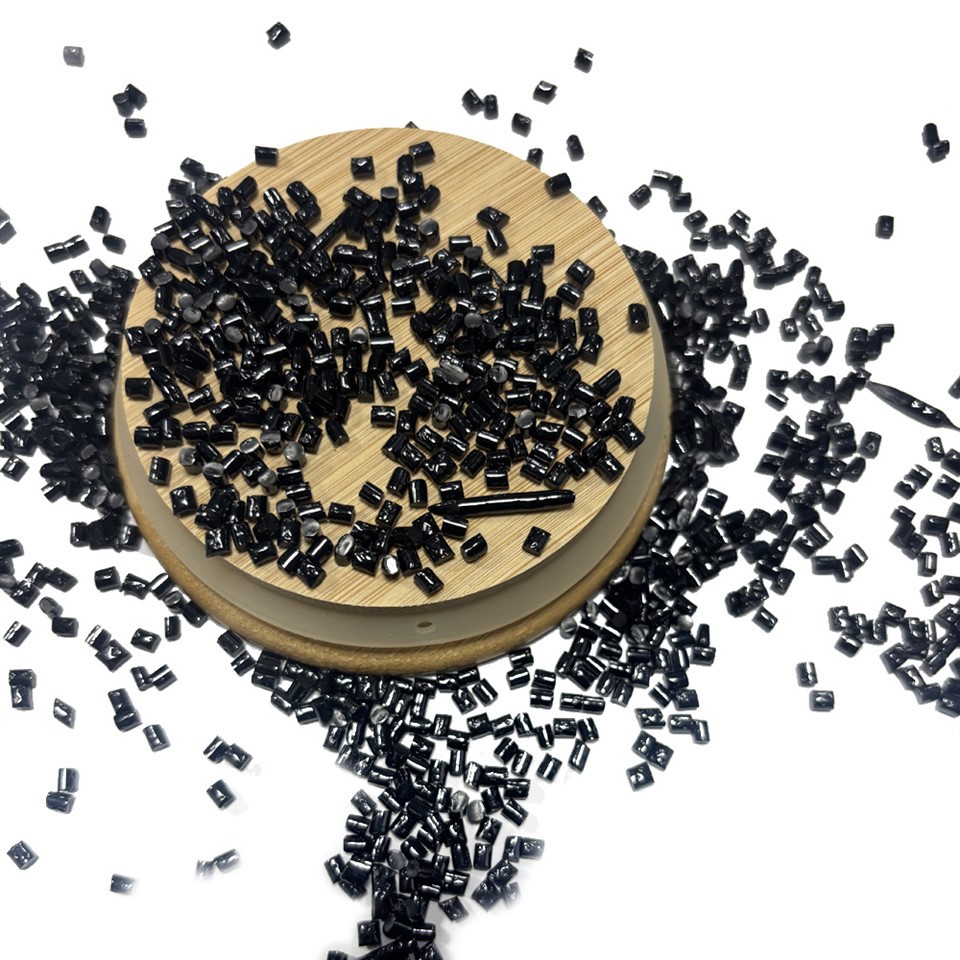

ESD POM plastic granules for anti static products



Name

Chinese factory ESD POM plastic granules for electronic products

Model

646A-22-JC

Usage

Injection and Extrusion level

Color

Nature Color or customized

Filler

ESD agent&POM materials

Application

ESD sheet,board,roll etc.

Brand

Ansuyi

Oringin From

Guangdong,China

Contacting way

yvonneyao@ansuyi.com





What is ESD POM plastic materials?



ESD Polyoxymethylene from Ansuyi is an engineering plastic with excellent anti static properties and high mechanical strength. It is widely used in extrusion and injection applications such as the parts of automobiles and medical equipment.Some key features and benefits of ESD POM plastic granules include:

  1. Excellent ESD properties: ESD Polyoxymethylene plastic granules effectively dissipate static charges.The surface resistance is 10^8-10^9 ohms
  2. High performance: ESD POM is a high-performance engineering plastic that offers exceptional strength, stiffness, and dimensional stability.
  3. Easy processing: ESD POM plastic granules can be easily processed and the density is 1.50 g/cm3
  4. It does not contain colorants or harmful dyes and meets requirements of REACH.





Why choose our ESD POM plastic materials



1. Firstly, our ESD POM plastic materials are fully customizable, we can manufacture them in any color you need such as green, purple, red, yellow, white and so on.

2. Secondly, Ansuyi ESD POM has already successfully used in the medical equipment , automobile packaging. On one hand, we ensure the quality of our ESD POM materials, on the other hand,we can massively produce the materials to save the cost of our clients. So that the POM ESD materials are more competitive in the market.



[Basic physical properties table] Permanent anti-static POM 646A-22-JC

POM

Specification level

Appearance color

Note instructions

General grade

true qualities

Mainly used for electronic products shell and other anti-static injection molding products, high strength, stable toilet surface resistance, easy to shape, high wear resistance

Feature

test method

test condition

unit

test data

Density

ISO 1183



g/cm3

1.50

Forming shrinkage rate

ISO294-4



%

0.4〜0.7

Tensile strength

ISO 527



MPa

90

Bending strength

ISO178



Mpa

133

Lipid dissolution index

ISO 1133

240℃/5kg

g/10min

9

Yield stress

ISO 527



Mpa

50

Surface resistivity

ISO3915-1981



Ω

108

IZOD notch impact strength

ISO179-1

23℃ /6.4mm
-30℃ /6.4mm

J/m

9

Distortion temperature

ISO 75

1.80MPa
1.82MPa/12.7mm

118

The drying temperature

ISO 75



Drying material for 3-4 hours, temperature: 85℃

Injection temperature

ISO 75



180℃~210℃



5

3a3457ebe75540c9540e3767492db72

product-1210-739

product-1210-1210





Products Description



Q: Which certificate do you have?

A: We have SGS, FDA and ISO9001 etc.

Q: Do you provide product testing and factory audits?

A: Yes, we can assist to get the designated test report for products and the designated factory audit report.

Q: How long is the life of ESD POM ?

A: The ESD POM is long term materials, it means that the anti static effect can last until your product is broken.

Q: Can you give the paper of the TDS/MSDS and SGS?

A: Yes, we can offer you all these documents, if you want them please contatc by yvooneyao@ansuyi.com

Q: What's your term of the delivery?

A: Our stanndard delivery term is FOB Shenzhen We also accept EXW, CFR, CIF, DDP, DDU etc. We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.

Q: Which shipping way can you provide?

A: We can provide shipping by sea, by air and by express.

Q: What's your after-sale service?

A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.
